Continuous Freezer S80 A1
Tetra Pak® ice cream freezers

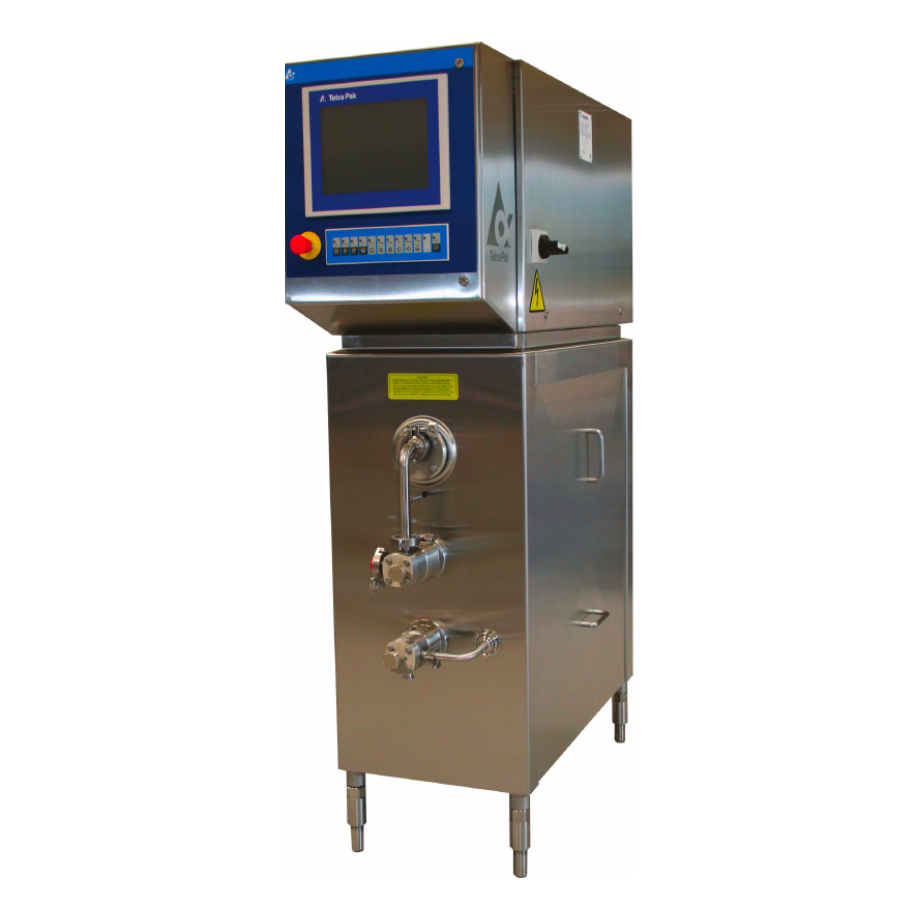

Tetra Pak® Continuous Freezer S80 A1
The Tetra Pak® Continuous Freezer S80 A1 is a pilot / laboratory scale continuous ice cream freezer designed for the continuous freezing and aeration of ice cream mix and similar fluid products. Built in 2019 and unused, the machine is particularly suitable for pilot plants, laboratories, product development, test production and small-scale industrial applications.
Flexible output from 10 to 100 l/h and adjustable overrun up to approx. 150%
Integrated refrigeration – no external refrigeration plant required
Automated control of overrun, capacity, viscosity and ice cream temperature
The unit is a self-contained continuous freezer with integrated refrigeration, Siemens S7 control system and variable-speed product pumps. The mix is metered by a gear pump, air is whipped in by the dasher inside the freezing cylinder, scraper blades remove the frozen product from the cylinder wall and a second gear pump discharges the product at stable cylinder pressure. This makes it ideal for developing and reproducing consistent product recipes.
Applications: Continuous freezing and aeration of ice cream mix and similar fluid products – suitable for recipe development, R&D and small production batches.
Capacity: 10–100 l/h typical, depending on the mix recipe; nominal output 100 l/h at 100% overrun.
Control: Built-in Siemens S7 PLC with graphic display control panel. Operating modes: automatic production, manual production, hold, end of production and CIP / flush.
- Year of manufacture: 2019
- Condition: unused
- Hermetic scroll compressor
- Self-contained refrigeration unit
- CIP-ready design (external CIP supply required)
- Capacity: 10–100 L/h, depending on recipe
- Integrated Siemens S7 PLC
- Integrated refrigeration system
- Includes approx. 10 L mix balance tank
- Overrun: approx. 10–150%, adjustable
- Power supply: 3 × 400 V / 50 Hz
Scope of delivery: Continuous freezer on stainless steel frame with Hoyer positive CIP mix and cream pumps, variable main drive, built-in refrigeration unit (hermetic scroll compressor, water-cooled condenser, refrigerant R449A), approx. 10 l mix balance tank incl. flexible hose and connection flanges, and the original operation manual. Not included: external CIP plant, installation, utility connections, ice cream mix supply and downstream filling / extrusion equipment.
All mix and ice cream contact parts of the Tetra Pak® Continuous Freezer S80 A1 are made of stainless steel, and the CIP-ready design is prepared for an external CIP supply. Contact us today for further information, documentation or an inspection.
What are the benefits of working with SCHNEIDER INDUSTRIES for Tetra Pak® components?
SCHNEIDER INDUSTRIES provides direct access to high-quality Tetra Pak® components and process solutions. Through our partnership, you benefit from innovative technology, short delivery times, and a wide portfolio of spare parts and systems tailored to your needs. Additionally, our experienced team offers comprehensive support and consultation.
Can SCHNEIDER INDUSTRIES supply spare parts for existing Tetra Pak® systems?
Yes, we offer a wide range of original Tetra Pak® spare parts for existing systems. This ensures optimal functionality of your machines and quick, reliable maintenance.
See our Spare Parts
How does SCHNEIDER INDUSTRIES support the implementation of new Tetra Pak® components?
Our team assists you from selecting the right components to integrating them into your production line. We provide technical consultation, installation, and training to ensure your systems operate efficiently and sustainably.
Can Tetra Pak® components be customized to specific production requirements?
Yes, Tetra Pak® components can be tailored to meet your production's specific needs. SCHNEIDER INDUSTRIES offers detailed consultation to ensure the chosen components perfectly fit your processes, maximizing efficiency and product quality.
